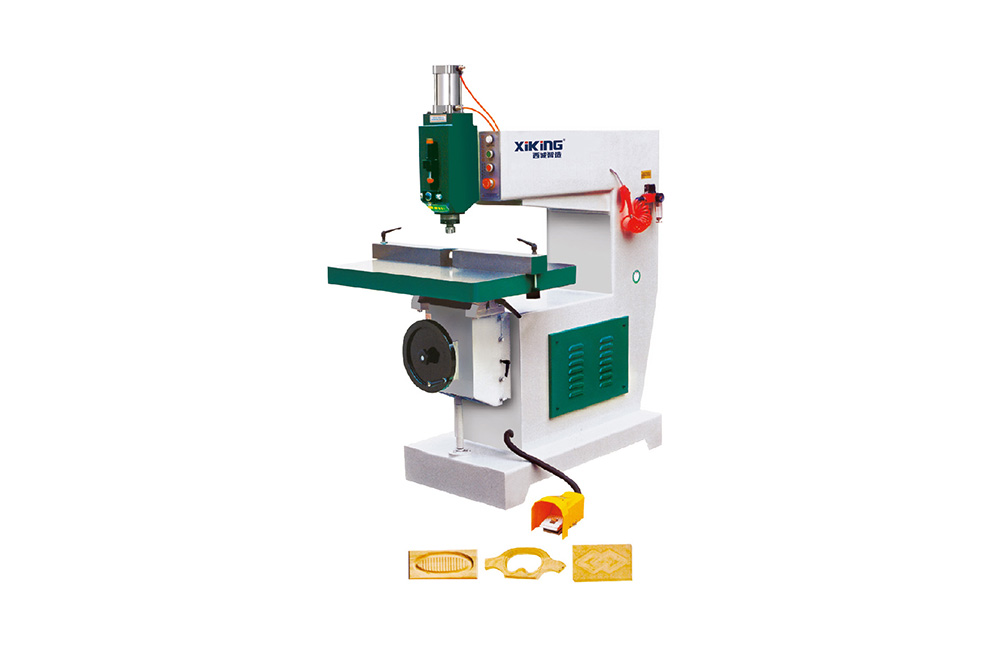

產品中心MX5068木工鏤銑床
參數配置
|
型號 |
Model |
MX5068單速（Single speed） |
|
工作臺行程 |
Max.milling height |
180mm |
|
工作臺尺寸 |
Dimension of working table |
800x600mm |
|
刀柄直徑 |
Dimension of cutter handle |
φ12.7mm |
|
主軸至立柱距離 |
Distance between main spindle and vertical pole |
800mm |
|
主軸最大行程 |
Max.journey of main spindle |
65mm |
|
主軸轉速 |
Main spindle rotating speed |
18000r/min |
|
安裝功率 |
Installation power |
3.0kw |
|
外形尺寸 |
Overall dimension |
1500x870x1700mm |
|
重量 |
Weight |
650kg |
